can someone help me with my ingition
09-21-2010 | 09:46 PM
#1
Thread Starter
Registered User
Joined: Sep 2010
Posts: 4
can someone help me with my ingition
just got a 81 turbo for 400 bucks but it doesnt start, the wires for the coil and con modual are all jacked up, can someone get a pic of those wires? theres also a small cylender that has a wire comming out of each end that bolts under the bracket that holds teh coil down and its no hooked to anything i have serched and i have gone over the fsm wireing diagrams and cant make sence of it thanks in advance
09-21-2010 | 09:52 PM
#2
The Good Twin
Joined: Aug 2005
Posts: 20,639
From: Wild Wild West, UTAH!
Welcome to ZDriver and to owning a 280zxt!
We have lots of pics posted here... check this:
https://www.zdriver.com/forums/showt...383#post283383
https://www.zdriver.com/forums/240z-260z-280z-motor-swaps-non-v8-269/l28et-s30-tucked-like-stock-only-better-pic-heavy-30516/
The coil bracket must be grounded for spark. The cylinder w/ wires on each end is an RF Condenser to stop radio interference... the car will run fine without it.
Also, feel free to buy a Haynes manual, or download the FSM from: www.xenons130.com/reference

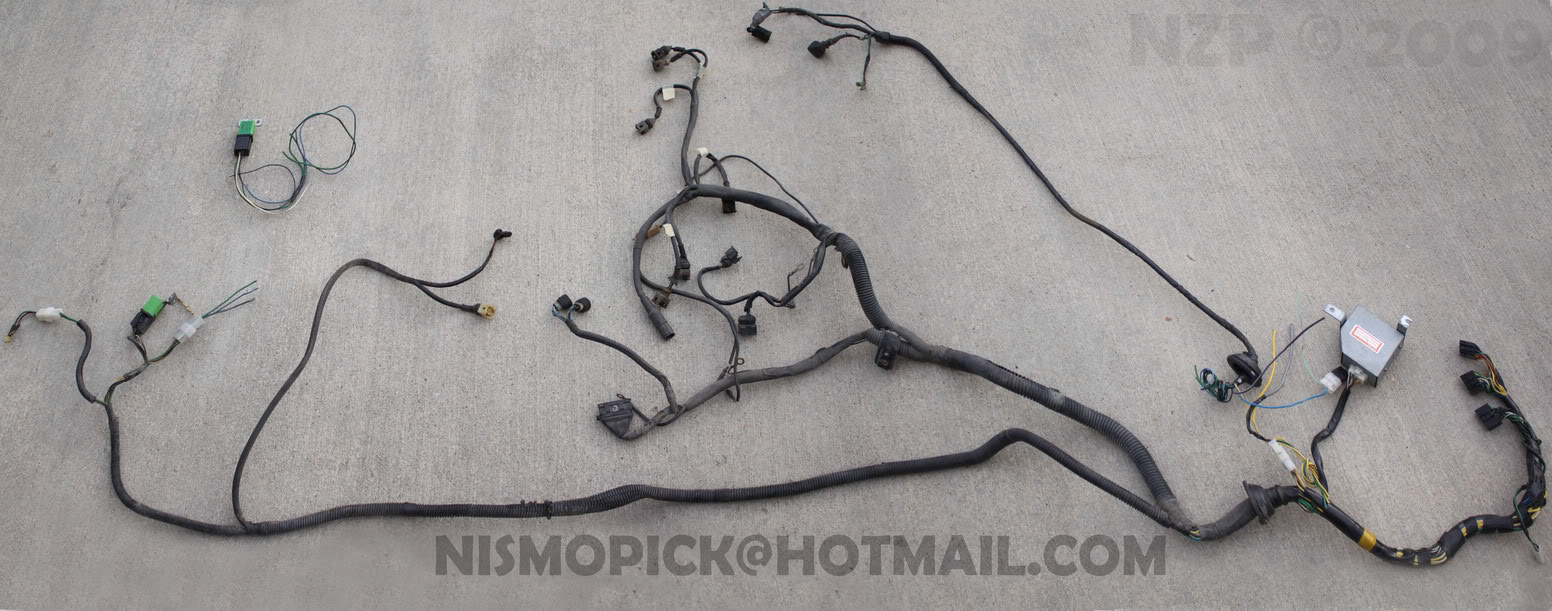

Panorama of wiring harness:
We have lots of pics posted here... check this:
https://www.zdriver.com/forums/showt...383#post283383
https://www.zdriver.com/forums/240z-260z-280z-motor-swaps-non-v8-269/l28et-s30-tucked-like-stock-only-better-pic-heavy-30516/
The coil bracket must be grounded for spark. The cylinder w/ wires on each end is an RF Condenser to stop radio interference... the car will run fine without it.
Also, feel free to buy a Haynes manual, or download the FSM from: www.xenons130.com/reference
Panorama of wiring harness:
Last edited by NismoPick; 09-21-2010 at 09:54 PM.
09-22-2010 | 10:19 AM
#3
Registered User
Joined: Jul 2010
Posts: 32
just got a 81 turbo for 400 bucks but it doesnt start, the wires for the coil and con modual are all jacked up, can someone get a pic of those wires? theres also a small cylender that has a wire comming out of each end that bolts under the bracket that holds teh coil down and its no hooked to anything i have serched and i have gone over the fsm wireing diagrams and cant make sence of it thanks in advance
09-22-2010 | 11:54 AM
#5
The Emblem Thief y0!
Joined: Aug 2009
Posts: 947
From: Tulsa, Ok
This is how you reply with such fashion...
Fix the spelling, don't criticize him for it. Only I am allowed to do that
Hello, I just got an 81' turbo for 400 bucks, but it doesn't start, the wires for the coil and con modual are all jacked up, can someone get a pic of those wires? There is also a small cylinder that has a wire coming out of each end that bolts under the bracket that holds the coil down, and its not hooked to anything. I have searched, and have gone over the FSM wiring diagrams and can't understand the wiring to my coil. Please Z Gods, help me!
09-22-2010 | 02:13 PM
#7
Registered User
Joined: Jul 2010
Posts: 32
09-25-2010 | 10:19 PM
#8
Thread Starter
Registered User
Joined: Sep 2010
Posts: 4
81 turbo wiring diagram
im sorry in advance for asking but ive been looking all week trying to find one online for a diagram for a 81 turbo,specificly ignition, ive found ones that didnt have anything labled which is no help to me, thanks
09-25-2010 | 10:27 PM
#9
The Good Twin
Joined: Aug 2005
Posts: 20,639
From: Wild Wild West, UTAH!
Please check your previous thread.... your question was already answered: https://www.zdriver.com/forums/showthread.php?t=31274
09-25-2010 | 11:02 PM
#11
The Good Twin
Joined: Aug 2005
Posts: 20,639
From: Wild Wild West, UTAH!
Merged threads. Check page EF-45 of the 81 supplement.

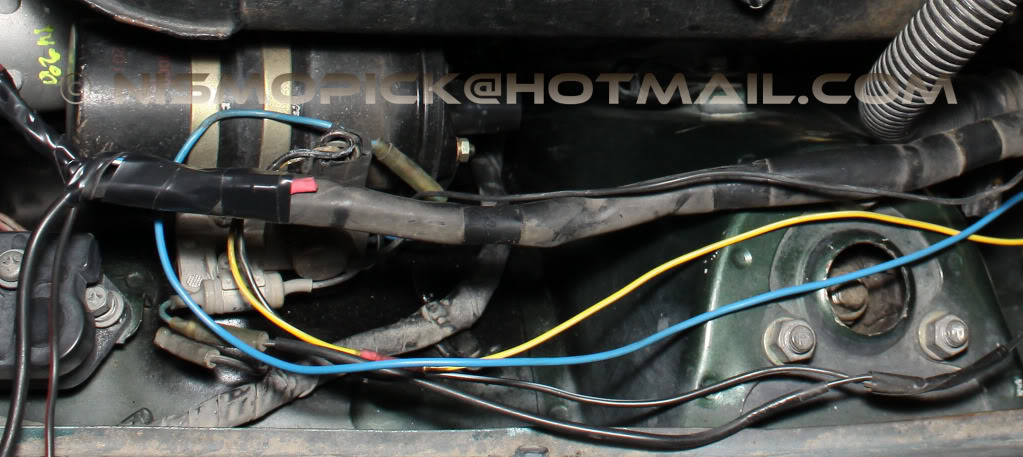

Here's another pic for you...
Yellow (trigger) & Black w/ white stripe (+12v power) go to ignitor. Out of ignitor the blue goes to negative on coil, black goes to positive. Blue splitter from negative goes to other blue wire (tach signal).
And that's it...
Here's another pic for you...
Yellow (trigger) & Black w/ white stripe (+12v power) go to ignitor. Out of ignitor the blue goes to negative on coil, black goes to positive. Blue splitter from negative goes to other blue wire (tach signal).
And that's it...
